GeckoTeq Aluminium ceiling rail for acoustic panels and baffles - 25kg

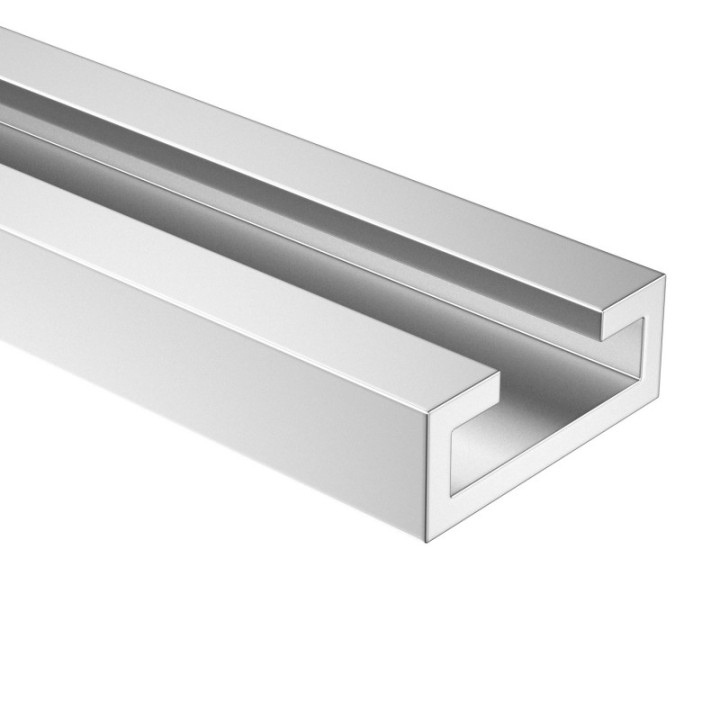

With this compact aluminium ceiling rail, you can hang acoustic panels and baffles from the ceiling flexibly, neatly, and professionally. The rail forms the ideal basis for projects where multiple panels need to be hung in an organized manner and in varying positions.

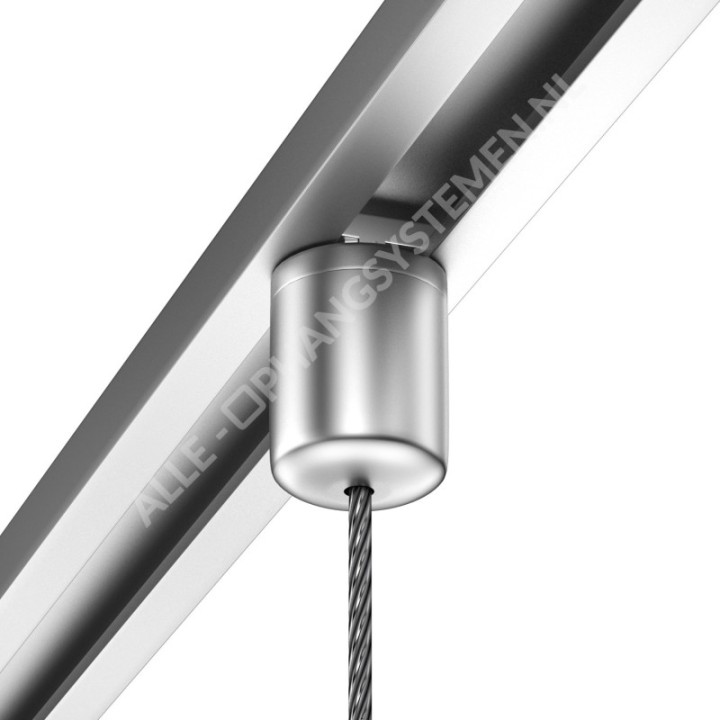

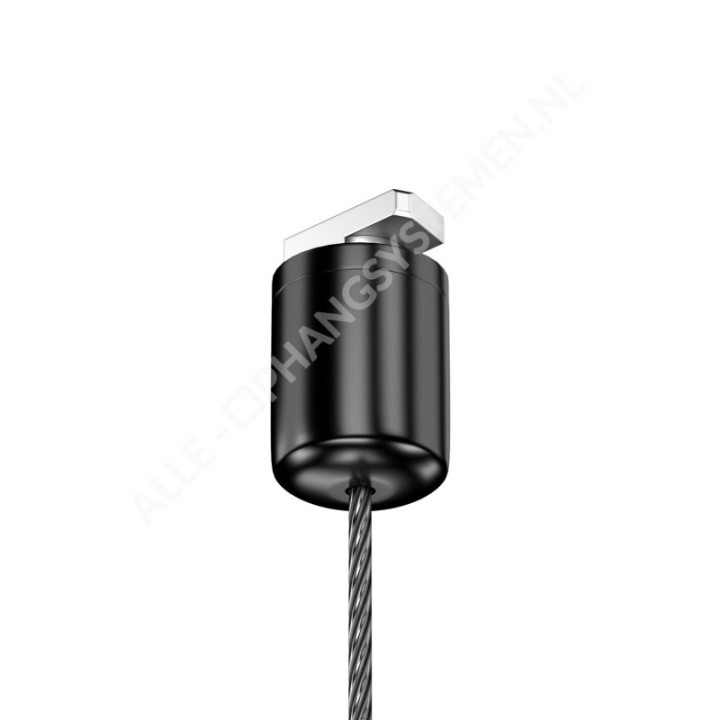

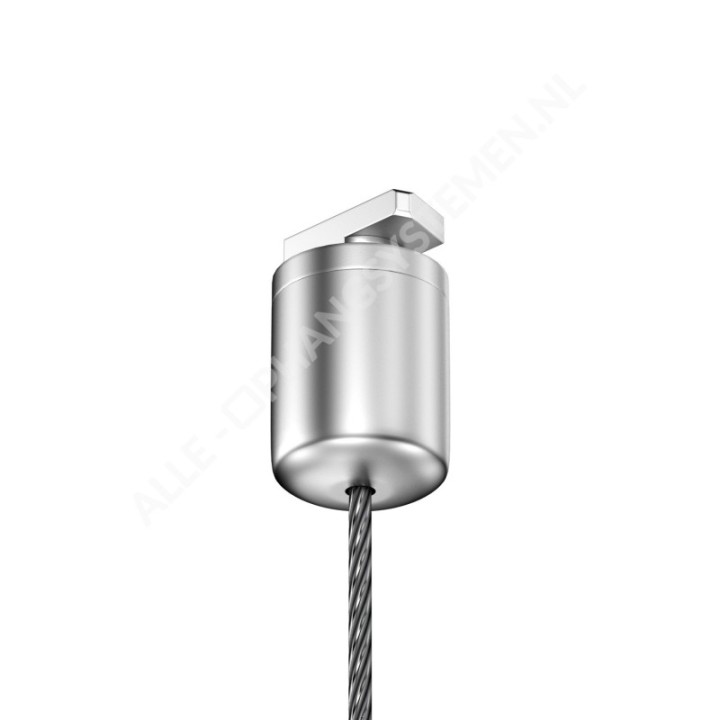

The cable fixings can be slid into the rail at any desired location and can then be moved along the entire length, if desired. This allows you to easily determine the spacing and exact position of each acoustic panel. If the layout changes later, the suspension points can be repositioned without the need for new holes in the ceiling.

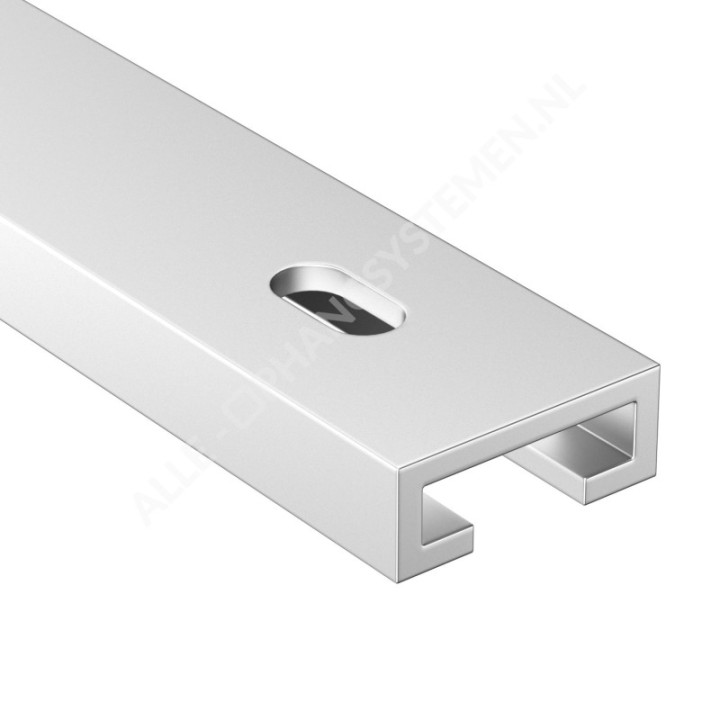

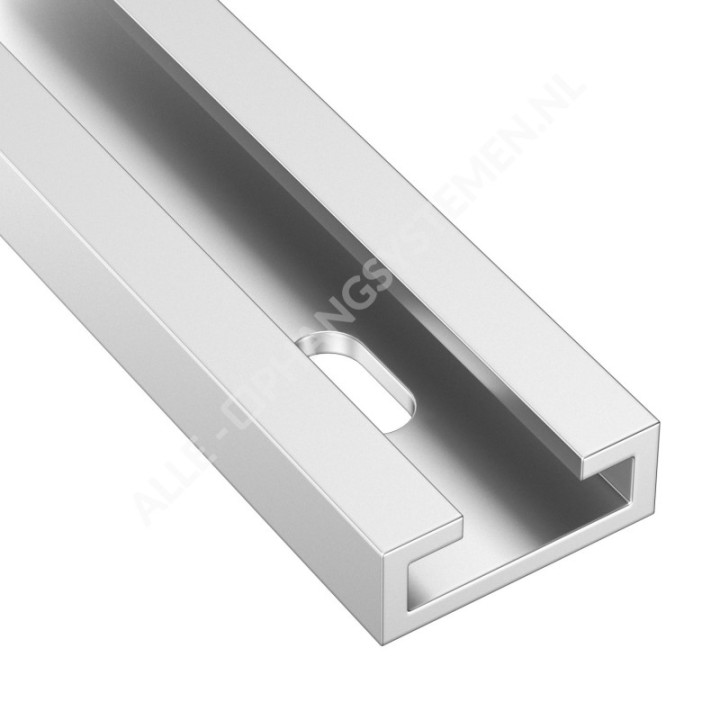

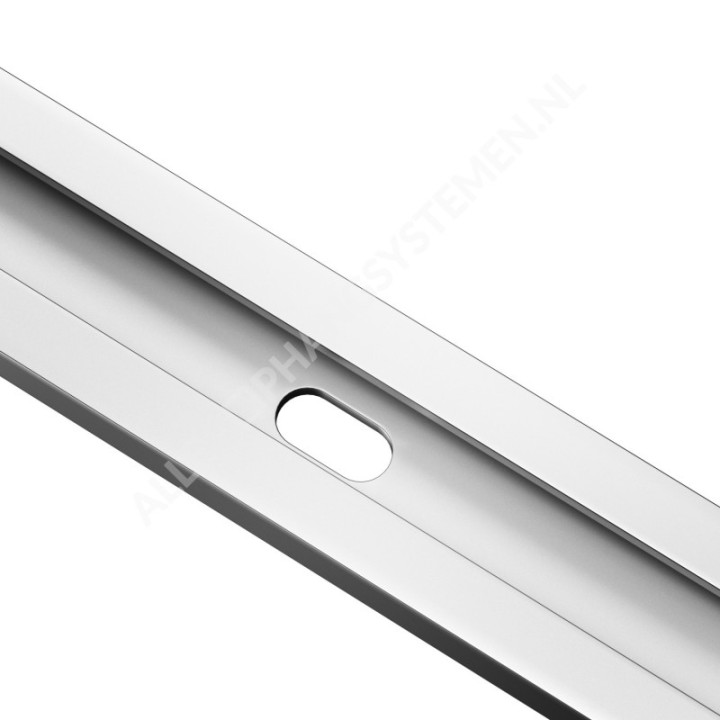

The rail is mounted directly to the ceiling using screws through the pre-punched slot holes. Thanks to the low profile of only 6 mm, the rail remains subtly present, allowing all attention to be focused on the acoustic panels.

Designed for use in combination with the acoustic ceiling anchor GT0796

Advantages:

• Flexible positioning of the suspension cables
• Ideal for multiple acoustic panels or baffles
• Suspension points remain adjustable laterally
• Panels can be easily moved later
• Sleek and compact aluminium profile
• Direct mounting to the ceiling
• Suitable for both straight and creative panel arrangements
• Professional solution for larger acoustic projects

Applications:

• Offices and meeting rooms
• Schools and libraries
• Hospitality and reception areas
• Shops and showrooms
• Public buildings and project furnishing
• Spaces with multiple free-hanging acoustic baffles

Assembly:

Attach the rail to the ceiling using suitable screws and plugs. Then slide the matching rail glides or cable fasteners into the rail. Position the suspension points at the desired locations and hang the acoustic panels at the correct height using steel cables.

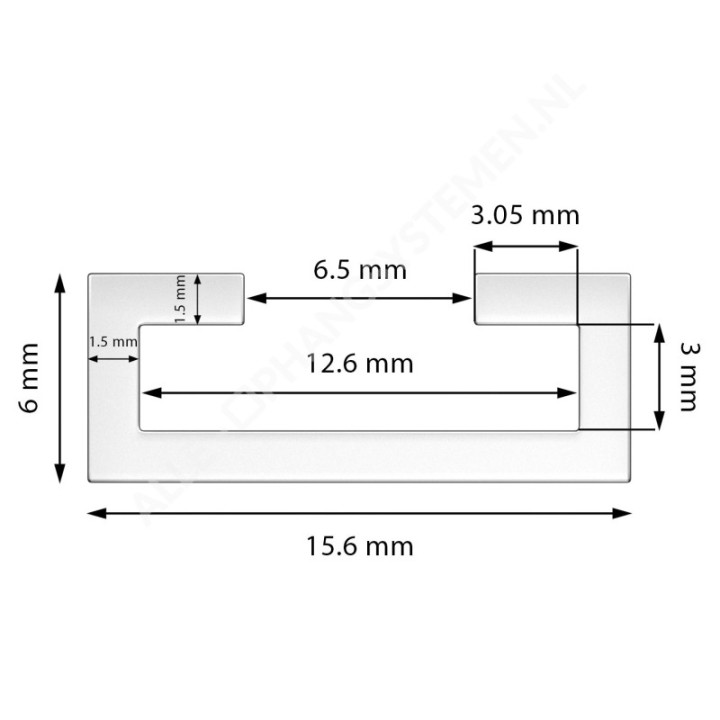

Dimensions of the profile:

• Width: 15.6 mm
• Height: 6 mm
• Length: 1220mm
• Inner opening: 6.5 mm
• Material thickness: 1.5 mm
• Slotted holes: 3 x (8 × 4 mm)

Always use mounting materials suitable for the type of ceiling and the total weight of the rail, suspension cables, and acoustic panels.

GT0794 ceiling rail – can also be used as a screw-on rail for PET panels.

The versatile GT0794 ceiling rail can also be screwed directly onto a PET panel for small panels. In combination with matching cable grippers, a sturdy and professional suspension solution is created that allows the panel to be easily and securely attached to steel cables. The slim aluminium rail ensures a neat finish and distributes the load evenly across the panel. Ideal for free-hanging acoustic PET panels in offices, meeting rooms, retail stores, and other project environments.

Advantages:

• Suitable as both a ceiling rail and a screw-on rail for PET panels.
• Firm and even attachment
• Sleek, professional appearance
• Flexible positioning of the cable grippers in the rail
• Ideal for custom work and project-based applications
