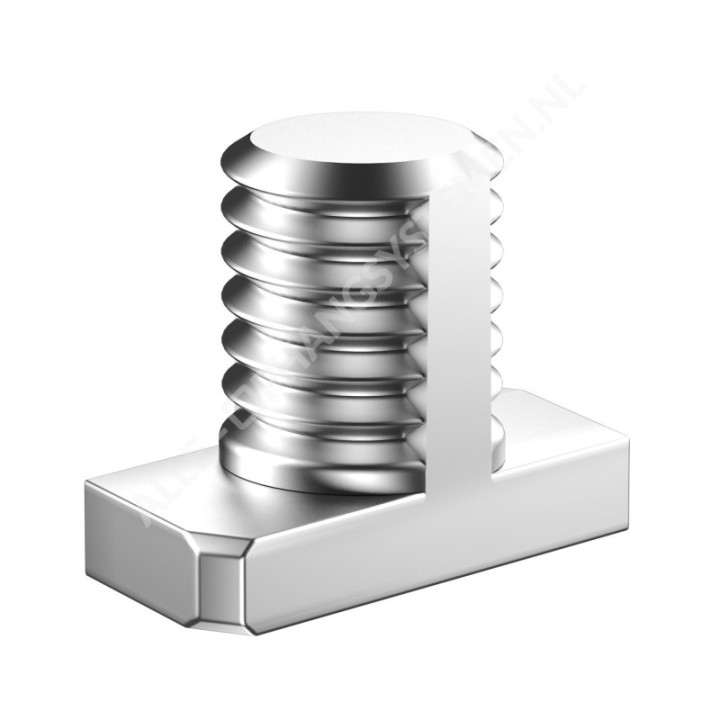

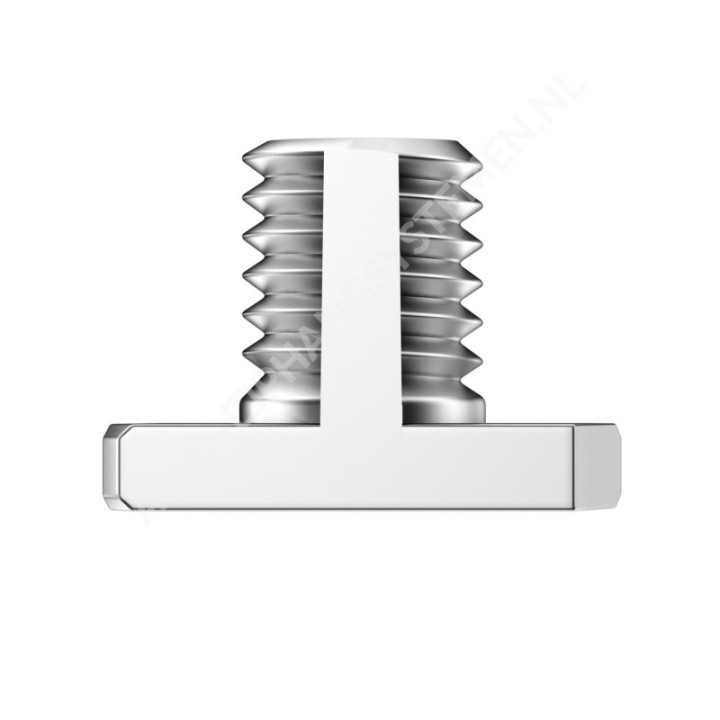

GeckoTeq T-foot screw M6 for rail gripper and rail anchor

The GeckoTeq GT0797 T-screw with M6 thread is used to assemble the GT0795 rail gripper and the GT0796 rail anchor. The T-shaped base connects to the suspension rail: a compact component for suspending acoustic panels and baffles.

The GeckoTeq GT0797 is the connecting component for assembling the GT0795 rail gripper and the GT0796 rail anchor. With this T-screw, the gripper or anchor receives a suitable rail mounting for use in suspension systems for acoustic panels and baffles.

The M6 thread is screwed into the gripper or anchor, while the flat T-foot fits into the slot of the corresponding rail. When tightened, the foot is clamped into the rail. This creates a compact connection between the rail and the suspension component.

Features:

·        For assembling the GT0795 rail gripper and the GT0796 rail anchor.

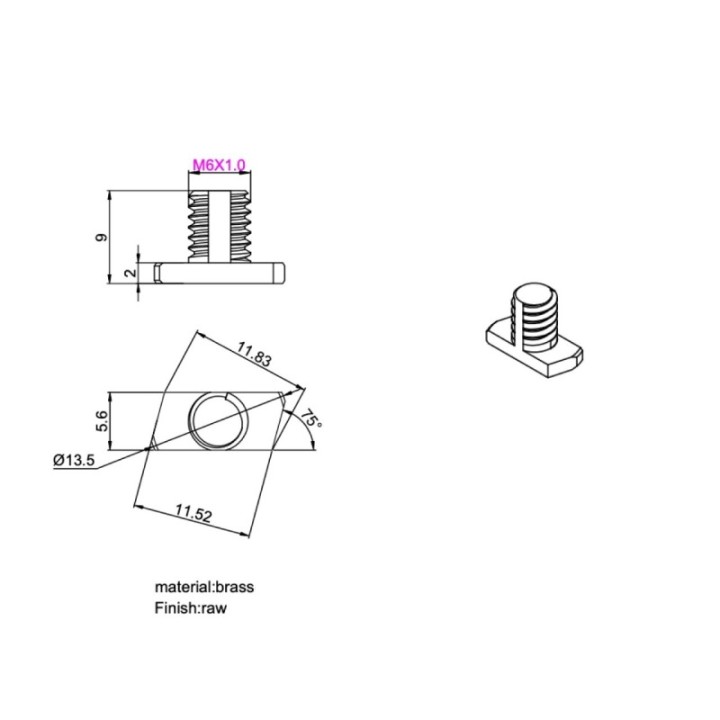

·        M6 × 1.0 thread.

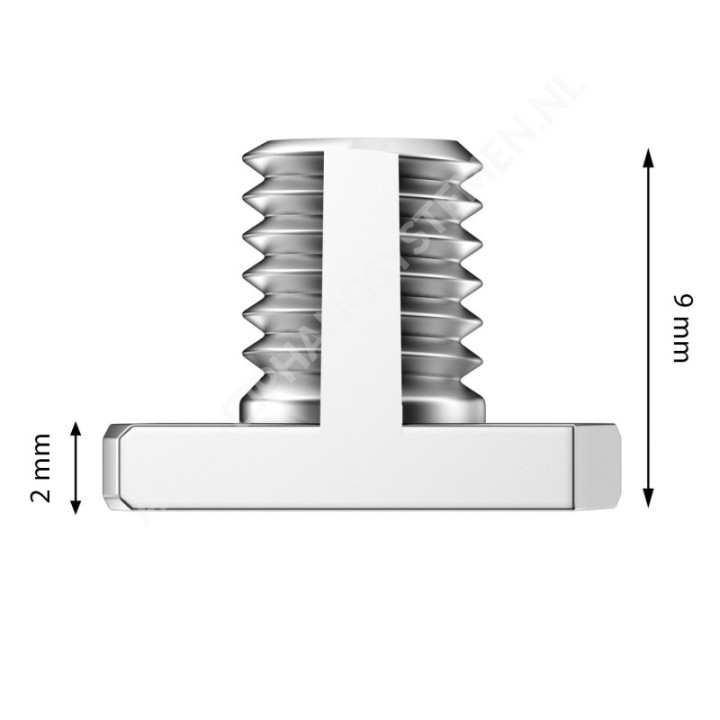

·        Total height: 9 mm.

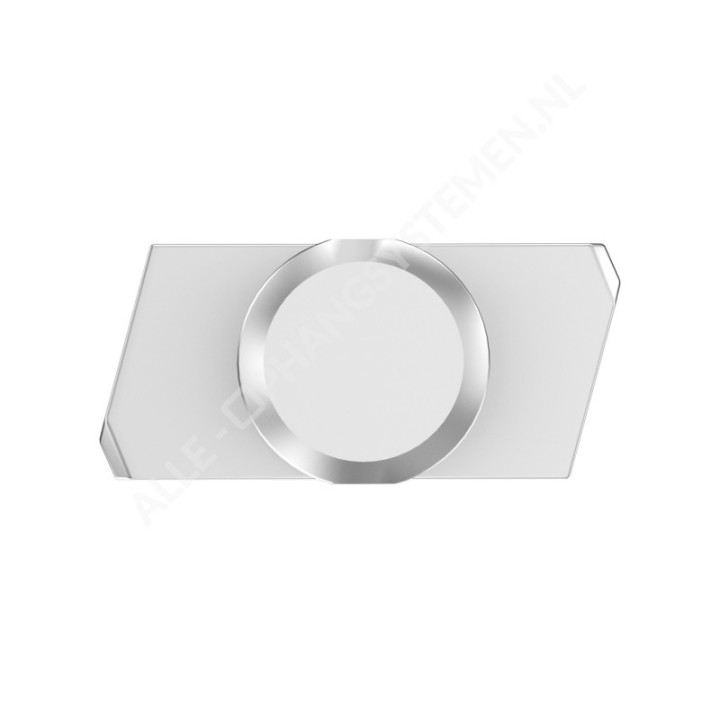

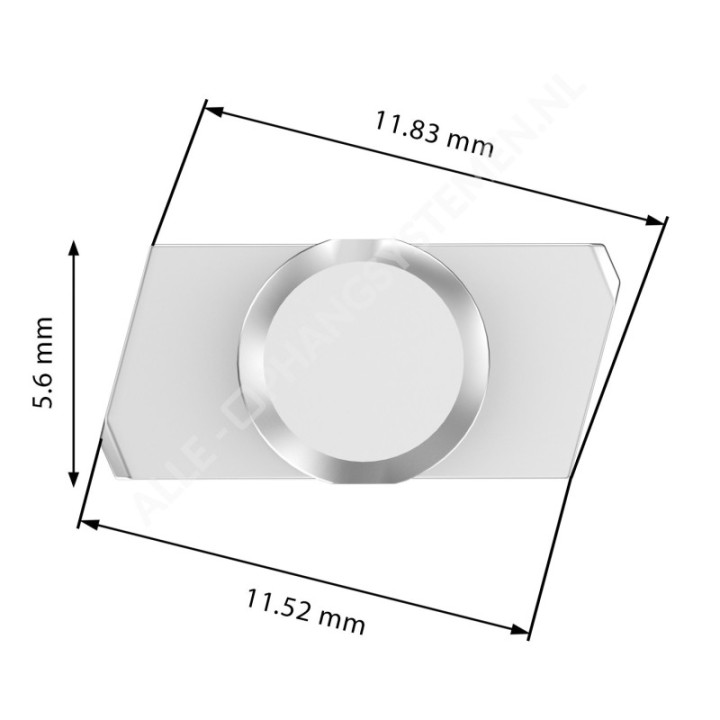

·        T-foot: 5.6 mm wide and 2 mm thick.

·        Material: Brass

·        Compact mount for a neat finish of the suspension system.
