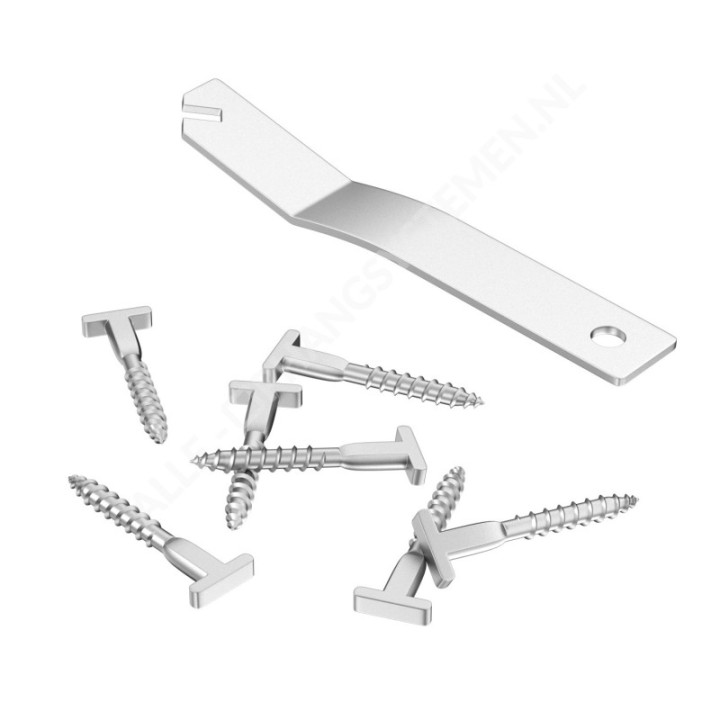

GeckoTeq T-screw for ceiling mounting of acoustic panel clamp rails

With this special T-screw, you can quickly, securely, and virtually invisibly attach an acoustic panel clamp rail to the ceiling. The T-shaped head fits precisely into the groove of the rail, leaving no visible screw heads on the outside. The result is a sleek and professional ceiling installation.

The screw is installed in the ceiling using a suitable plug. Next, place the clamping rail over the T-head and turn it 90 degrees with the mounting wrench to lock the rail. For disassembly, simply turn the T-head back so that the rail can be removed without unscrewing the ceiling mount.

Advantages:

• Specifically developed for acoustic panel clamp rails
• Quick and easy ceiling mounting
• T-head locks securely into the groove of the rail
• Barely visible after installation
• The rail remains easy to dismantle.
• Ideal for a sleek, professional finish

Assembly:

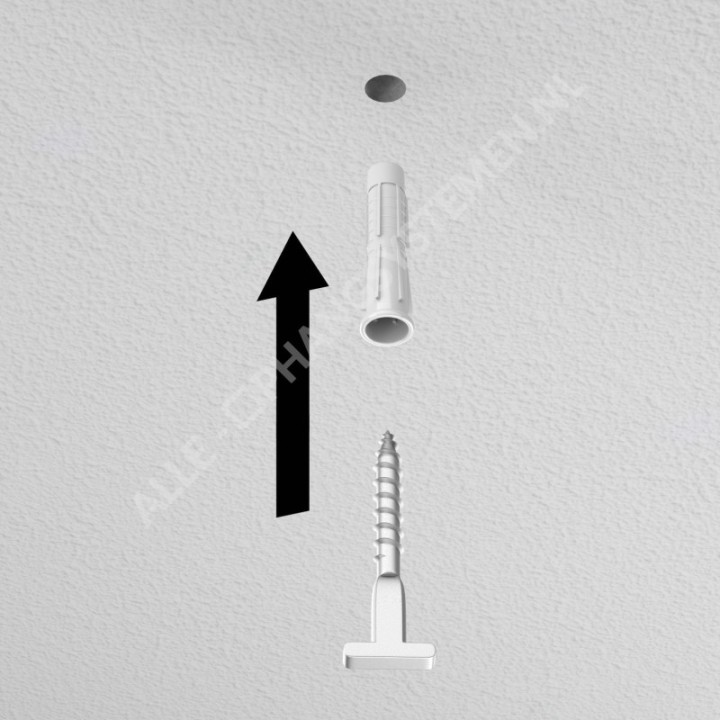

1. Drill a hole and insert a plug suitable for the type of ceiling.

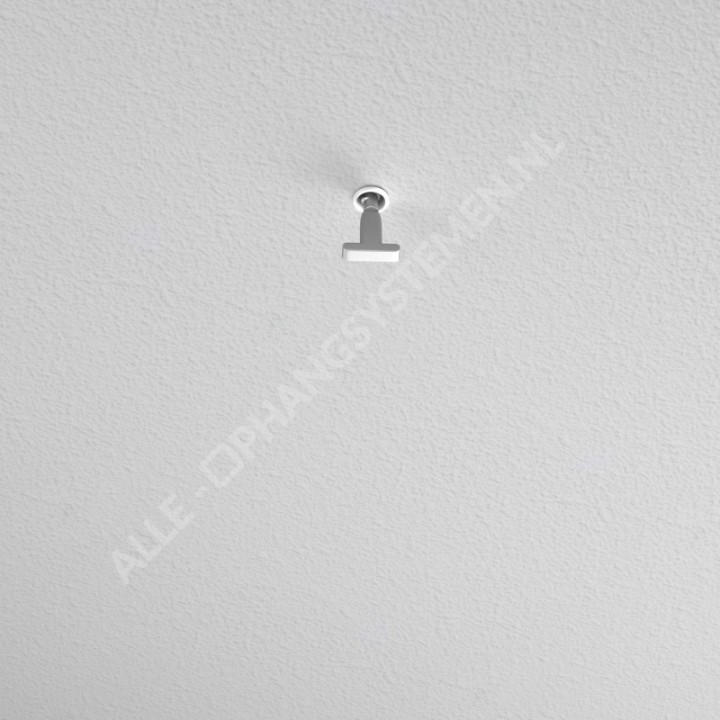

2. Screw the T-screw firmly into the plug.

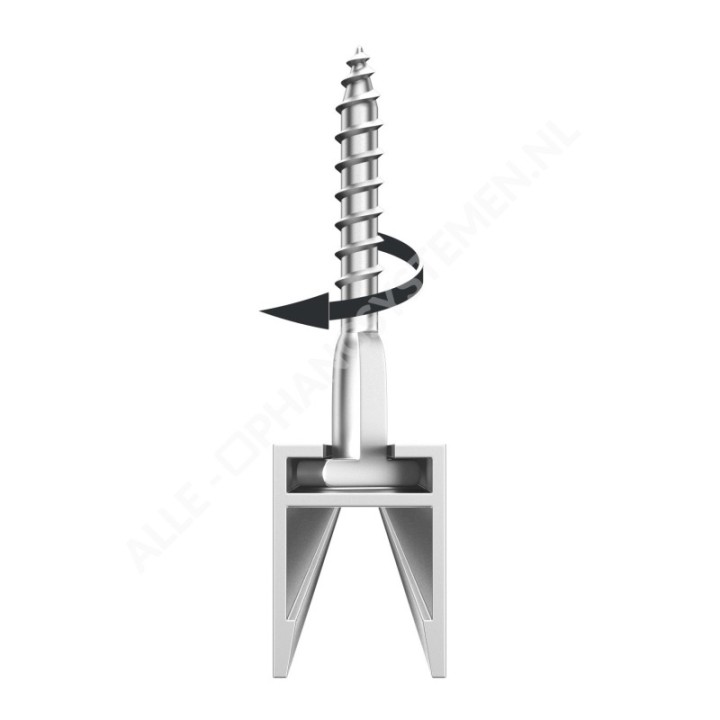

3. Place the groove of the clamping rail over the T-head.

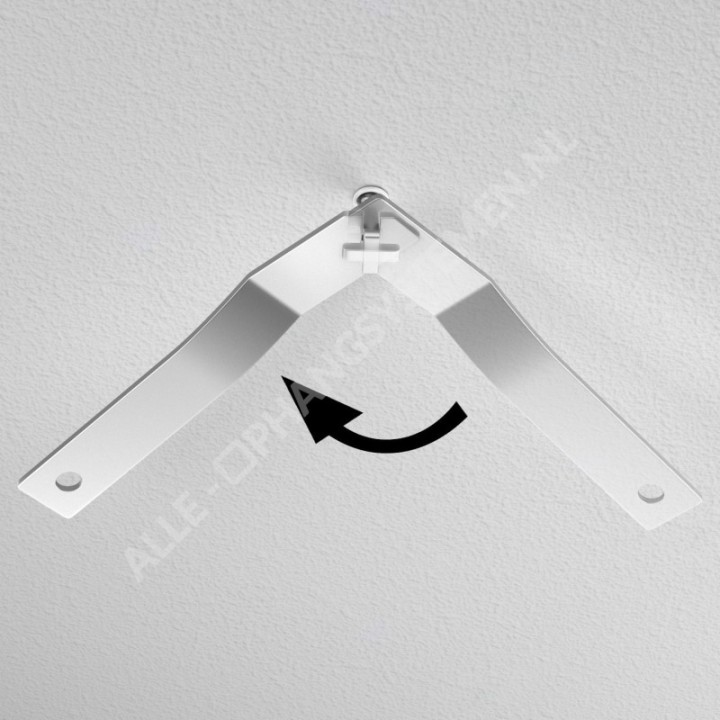

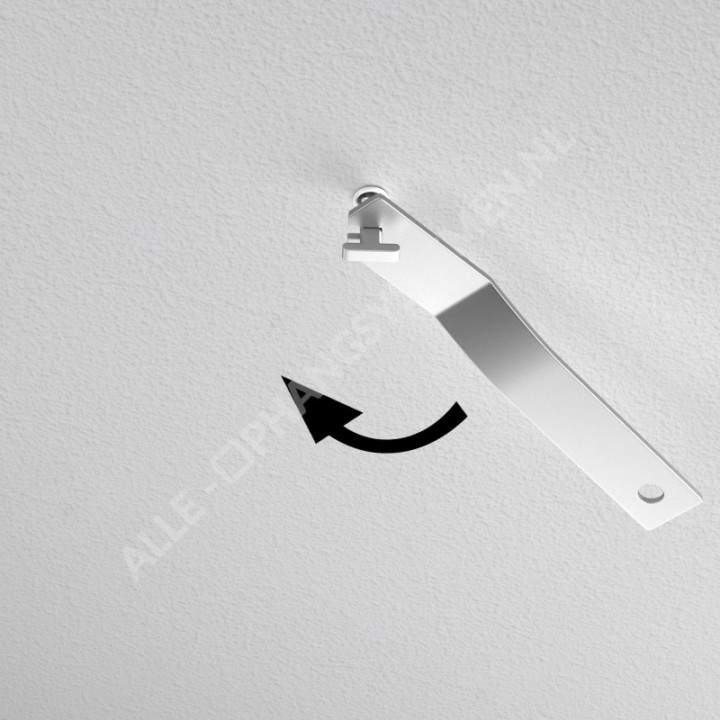

4. Turn the T-head 90 degrees to the left with the mounting wrench to lock the rail.
5. Turn to the right to unlock the rail again.

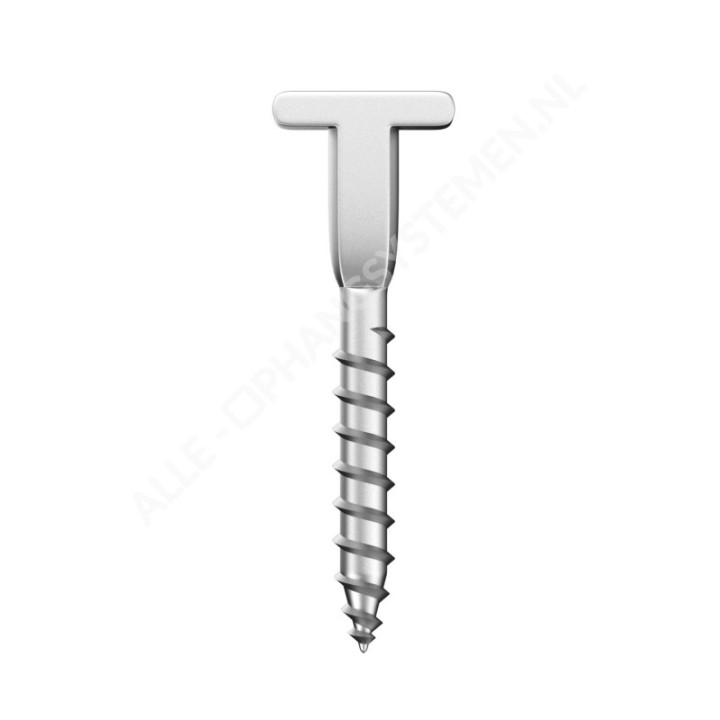

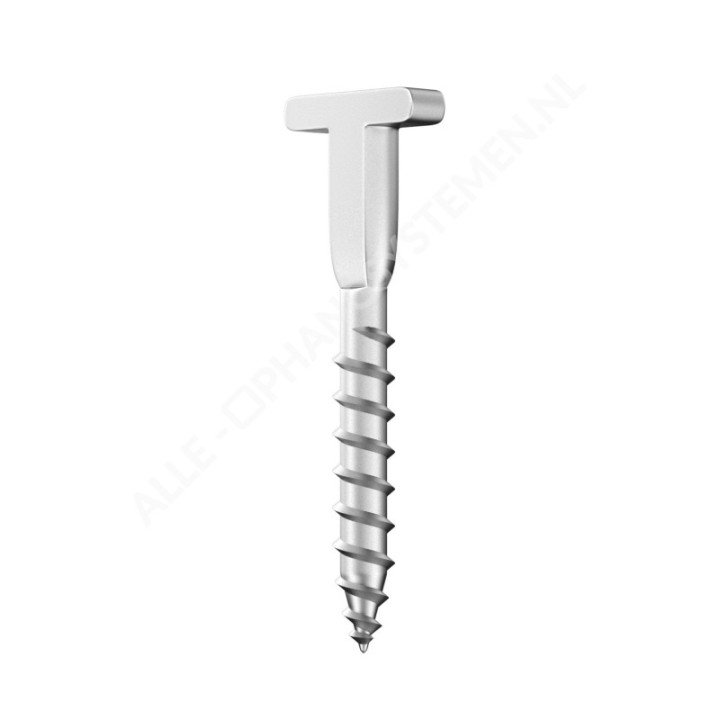

Dimensions:

• Total length: 41.8 mm
• Thread length: 25.6 mm
• Thread diameter: 5.9 mm
• T-head width: 12.8 mm

Always use a plug and an appropriate number of T-screws suitable for the ceiling material and the total weight of the rail with the acoustic panel.
