GeckoTeq Aluminium clamping and suspension rail for acoustic PET panels 9/12/24mm – 20kg

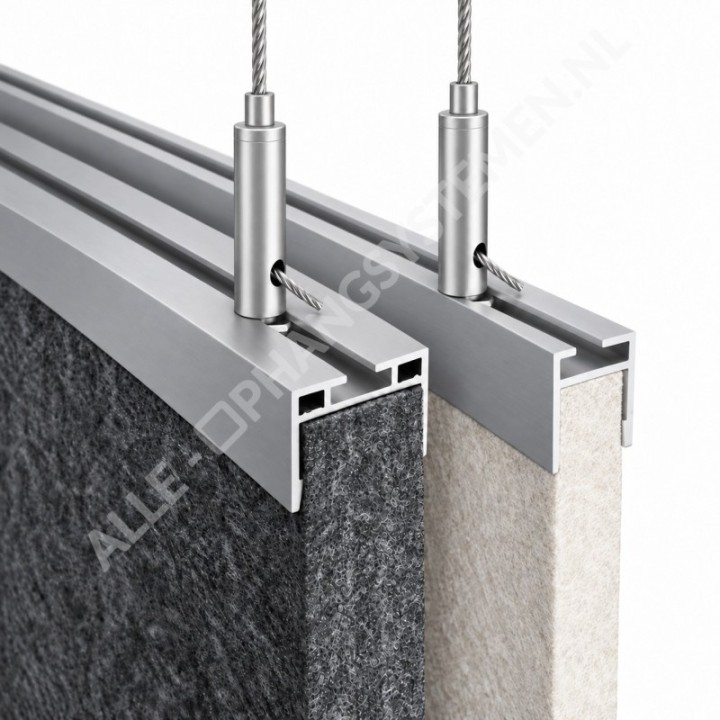

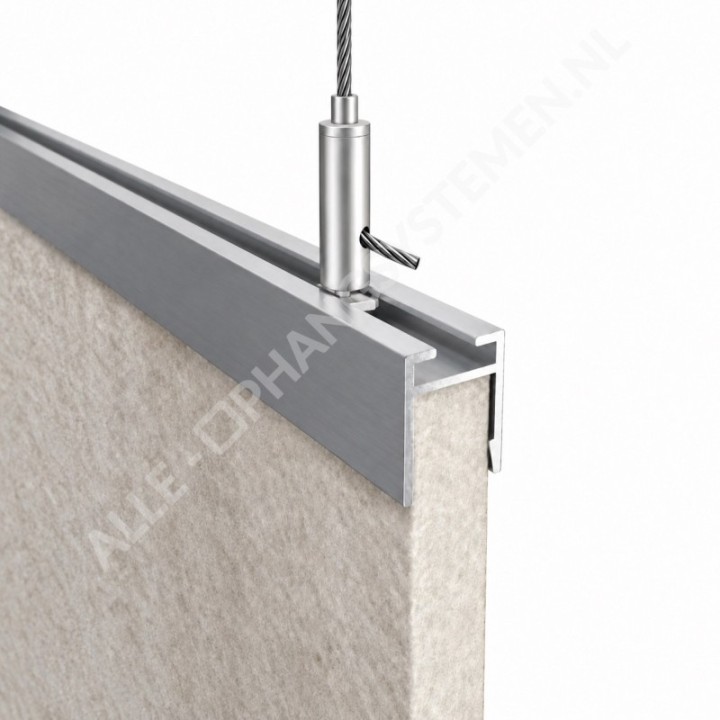

With this professional aluminum clamp rail, you can hang acoustic PET panels and baffles securely and tautly, without visible fasteners. The panel is clamped firmly into the lower part of the profile, eliminating the need for screws or drill holes in the acoustic panel.

The top of the rail features a mounting groove. Cable grippers can be inserted into this groove for suspended ceiling mounting. Additionally, the rail can be attached directly to the ceiling using special T-screws (if desired). For longer installations, multiple rails can be precisely joined together using a rail connector.

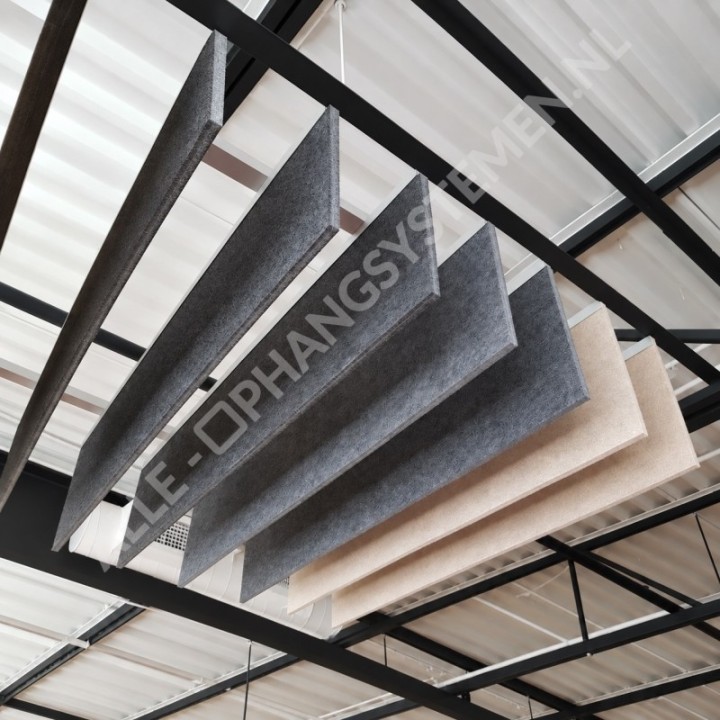

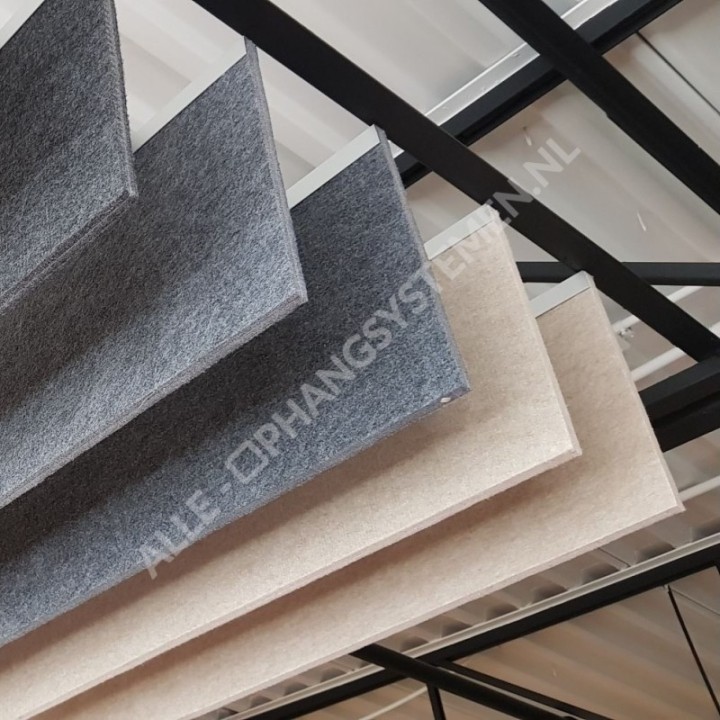

Thanks to the slim design, the rail forms a neat top finish for the panel. Ideal for acoustic solutions in offices, schools, meeting rooms, hospitality, shops, and public buildings.

Advantages:

·        Firm clamping without screwing through the panel

• Suitable for suspended and direct ceiling mounting
• Sleek and professional finish
• Cable grippers can be positioned freely in the top groove.
• Multiple tracks can be coupled using track connectors.
• Simple and quick assembly
• Suitable for straight, shaped, and decoratively cut PET panels
• Durable and lightweight aluminium profile

Available for various panel thicknesses in silver and black:

• Clamping rail for panels of approximately 9 mm
• Clamping rail for panels of approximately 12 mm
• Clamping rail for panels of approximately 24 mm

Mounting options:

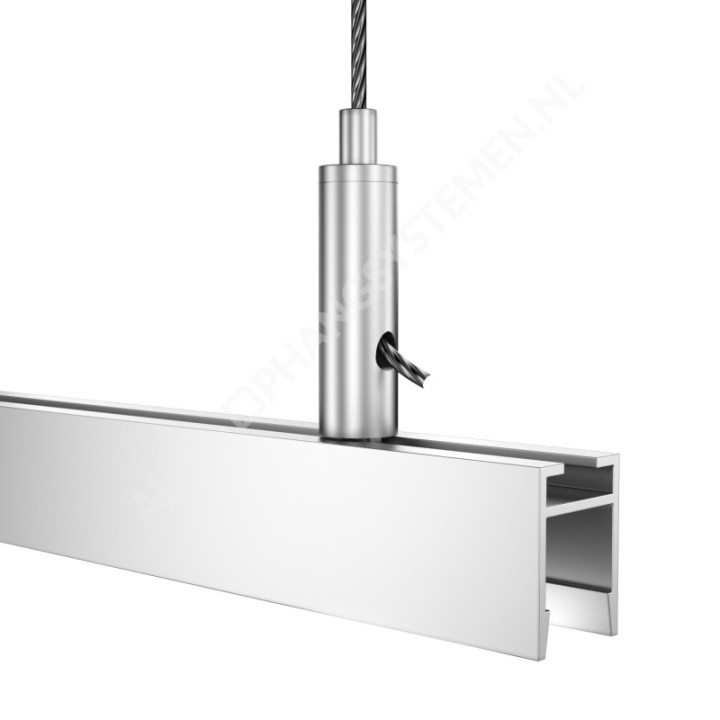

• Freely suspended from steel cables with adjustable cable grippers
• Directly to the ceiling with special T-screws
• As a continuous rail construction with internal rail connectors

With this modular clamp rail, you can easily create a stable and stylish suspension that perfectly complements modern acoustic interior projects.

Also take a look at our matching ceiling rail (GT0794)

Technical specifications of the aluminium clamping rails

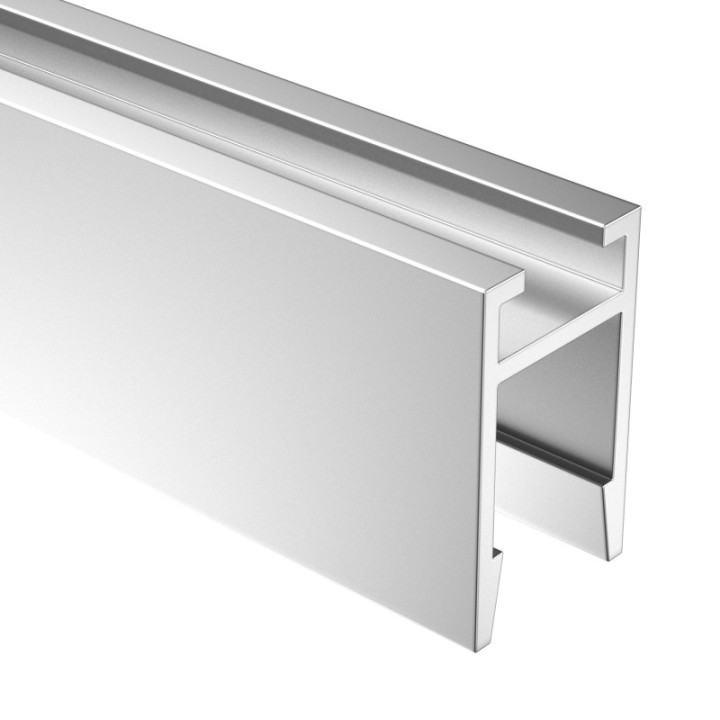

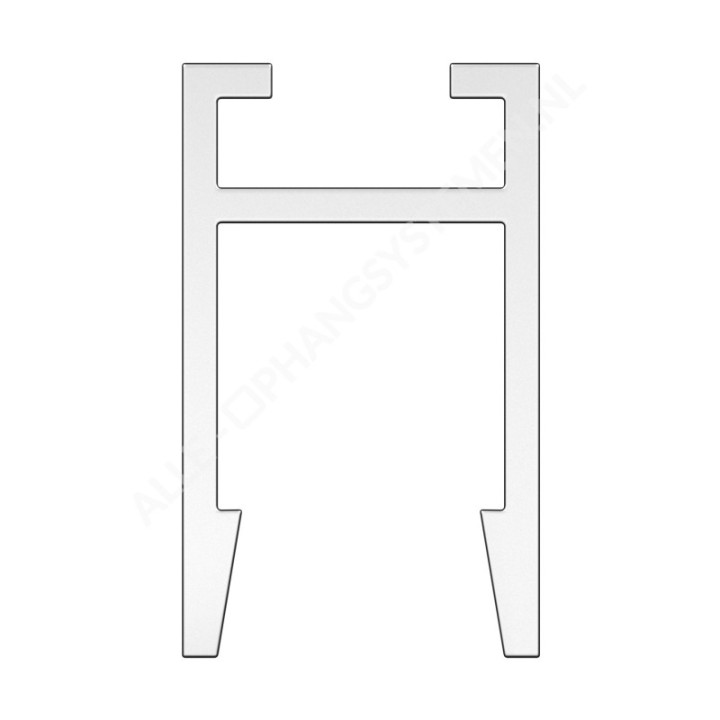

The clamp rails have a standard length of 1220 mm and are available for acoustic panels approximately 9, 12, and 24 mm thick. All versions are 20 mm high and feature an integrated mounting groove on the top. Cable grippers, T-screws, and other suitable rail accessories can be placed in this groove.

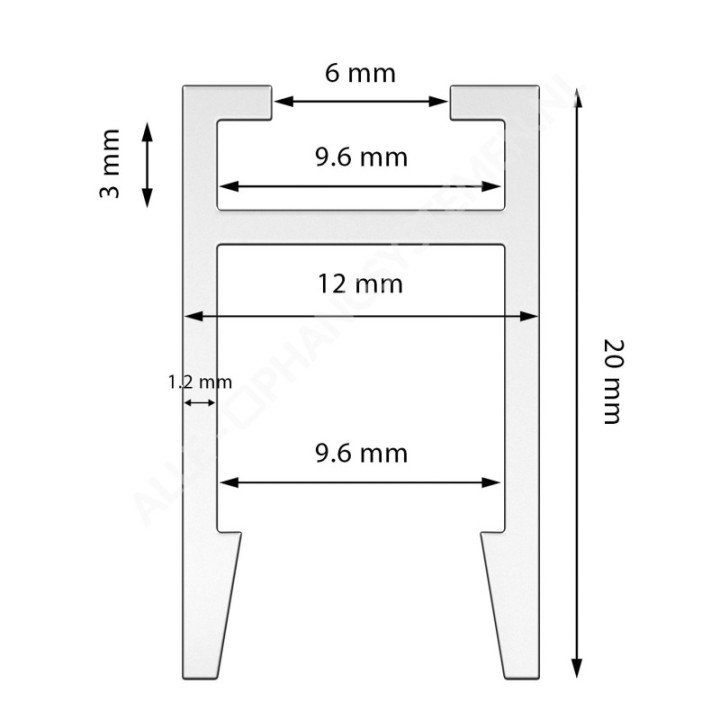

General technical data:

• Material: aluminium
• Length: 1220 mm
• Height: 20 mm
• Material thickness: approximately 1.2 mm
• Width of opening above groove: 6 mm
• Depth above groove: 3 mm
• Mounting: directly against the ceiling or freely suspended from steel cables
• Connectable with internal rail connectors
• Suitable for adjustable cable grippers and special T-screws

Always choose the rail that matches the actual thickness of the acoustic panel. This ensures proper clamping and prevents the panel from being placed too loosely or too tightly in the profile.
